W2899MC480
Description

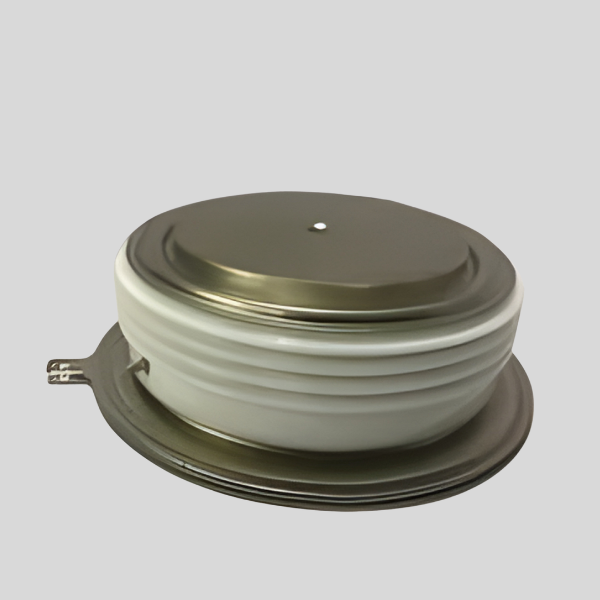

IXYS Capsule Type – W2899MC480
The Ixys Capsule Type W2899MC480 is a high-power rectifier diode designed for industrial power conversion and heavy-duty rectification applications. Built in a robust capsule (W54) package, it provides high current and high voltage handling capability, making it suitable for use in large AC drives, DC power supplies, traction converters, welding equipment, and other demanding power systems.
Key Features
- High repetitive peak reverse voltage: up to 4800 V, enabling use in high-voltage applications.
- Maximum average forward current rating of approx. 2899 A (at 55 °C), for heavy load performance.
- Strong surge current capability (~25400 A, 10 ms half sine wave) for transient loads.
- Low forward voltage drop and low slope resistance for efficient conduction.
