W1074YH320
Description

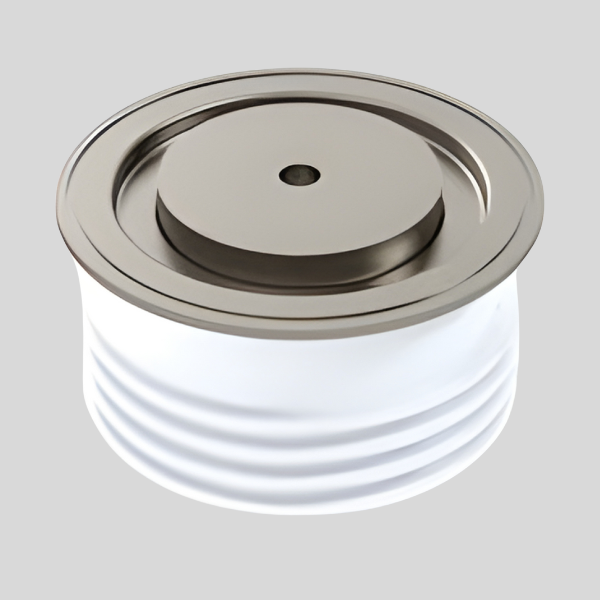

IXYS Capsule Type – W1074YH320
The Ixys Capsule Type W1074YH320 is a high-power silicon rectifier diode in a rugged press-pack capsule package. It is designed for industrial rectification applications where high current and high voltage performance are required, such as AC drives, DC power supplies and heavy-duty converters.
Key Features
- High repetitive peak reverse voltage: 3200 V.
- Rated average forward current: 1074 A (at 55 °C case temperature).
- Surge peak forward current capability up to approximately 10 800 A.
- Low forward voltage drop (~0.92 V) and low slope resistance (~0.39 mΩ).
