MCC 162-16IO1

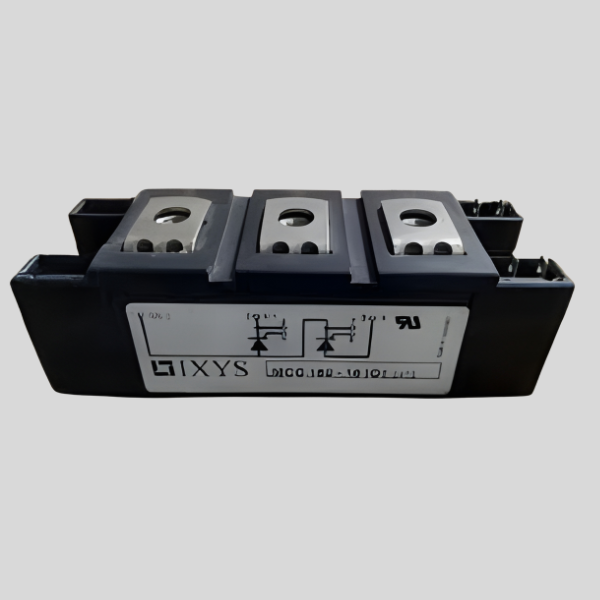

IXYS Capsule Type – MCC 162-16IO1
The IXYS MCC162-16IO1 is a dual high-power thyristor (SCR) module designed for industrial power control and rectification applications. It combines two SCRs in a single isolated package for efficient AC phase control in systems such as motor drives, power converters, lighting control, and industrial heating. Its robust construction with Direct Copper Bonded (DCB) ceramic base plate ensures excellent thermal performance and durability in demanding environments.
Key Features
- Rated repetitive peak off-state voltage (VRRM) of up to 1600 V for high-voltage applications.
- Average forward current rating of approx. 181 A with an RMS on-state current up to ~300 A.
- Surge current capability of about 6000–6400 A for transient load handling.
- Low forward voltage drop and planar passivated chips for efficient conduction.
